MT7628DA 4G LTE WiFi Router 300Mbps 2.4GHz RS232 RS485 4g LTE Module

Name: MT7628DA 4G LTE WiFi Router 300Mbps 24GHz RS232 RS485 4g LTE Module
Brand: OEM/Neutral
Price: 1 USD

Wholesale MT7628DA 4G LTE WiFi Router 300Mbps 2.4GHz RS232 RS485 4g LTE Module from china suppliers

Brand Name : OEM/Neutral

Model Number : WD523

Certification : CE/FCC/RoHs

Place of Origin : China

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T, Western Union, paypal

Supply Ability : 80000pcs/month

Delivery Time : 5-8 work days

Packaging Details : 1 pcs device/1pcs packing box 20pcs device/1 carton

Product Name : 4g LTE Module Industrial WiFi With Openwrt 4G LTE WiFi Router Unlocked 2.4GHz 300Mbps RS232 RS485 4G Wlireless Router

Max. LAN Data Rate : 300Mbps

Main Chipset : MT7628DA

Work Frequency : 2.4GHz

Flash/Ram : 16MB+64MB

Wired Transfer Rate : 10/100Mbps

Connector : 6 PIN connector

Warranty : 1 Years

Contact Now

Product Description

4g LTE Module Industrial WiFi With Openwrt 4G LTE WiFi Router Unlocked 2.4GHz 300Mbps RS232 RS485 4G Wlireless Router

Product features:

Using MT7628DA solution, MIPS24KEc architecture CPU, the main frequency is up to 580MHZ MT7628DA chip integrates 2.4G WIFI function, the rate is up to 300Mbps MT7628DA chip integrates 64MB DDR2, with 8MB Nor Flash 1WAN, 1LAN full 100M adaptive network ports, support auto flip (Auto MDI/MDIX) Support one RS232, one RS485 serial communication interface, support anti-static and anti-surge design Support 9-32V power supply, meet industrial power requirements, support anti-static and anti-surge design Support "one-key flashing mode", that is, long press the reset button to turn on the machine to enter the rescue flashing mode Built-in mini-PCIE standard interface, which can be used to connect 4G mobile communication module External standard SIM card interface, support SIM/USIM card External high-gain omnidirectional antenna, wireless signal 360 degrees without dead angle This product supports the hardware watchdog function, and the device will automatically restart when the routing system or 4G module fails
Remark: The price on alibaba is not including 4G module, if you need 4g module, please contact me.

MT7628DA 4G LTE WiFi Router 300Mbps 2.4GHz RS232 RS485 4g LTE Module

Warm Reminder

Please check your frequency bands first!

Please note that the prices quoted is without 4G /5Gmodule.  Welcome to send inquiry below to me for more details about this router!

Product Tags:

MT7628DA 4G LTE WiFi Router

4G LTE WiFi Router 300Mbps

RS485 4g LTE Module

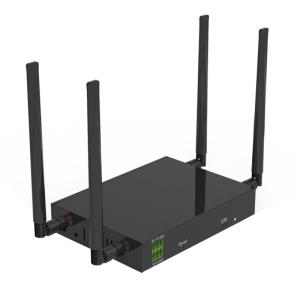

MT7628DA 4G LTE WiFi Router 300Mbps 2.4GHz RS232 RS485 4g LTE Module Images
